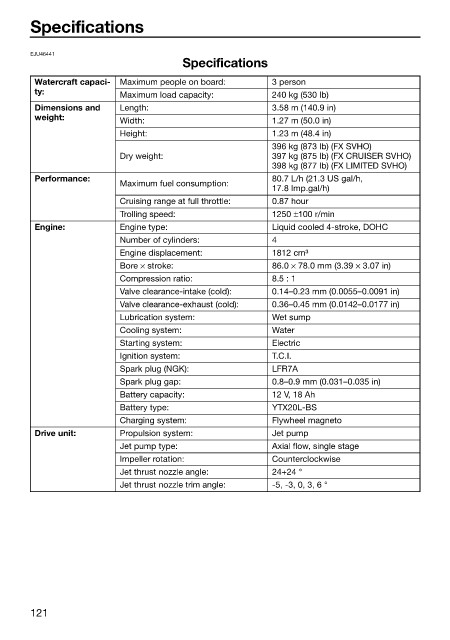

Specifications

EJU46441
Specifications
Watercraft capaci- Maximum people on board: 3 person
ty: Maximum load capacity: 240 kg (530 lb)
Dimensions and Length: 3.58 m (140.9 in)
weight: Width: 1.27 m (50.0 in)
Height: 1.23 m (48.4 in)
396 kg (873 lb) (FX SVHO)
Dry weight: 397 kg (875 lb) (FX CRUISER SVHO)
398 kg (877 lb) (FX LIMITED SVHO)
Performance: 80.7 L/h (21.3 US gal/h,
Maximum fuel consumption:
17.8 Imp.gal/h)
Cruising range at full throttle: 0.87 hour
Trolling speed: 1250 ±100 r/min
Engine: Engine type: Liquid cooled 4-stroke, DOHC
Number of cylinders: 4
Engine displacement: 1812 cm³
Bore × stroke: 86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio: 8.5 : 1
Valve clearance-intake (cold): 0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold): 0.36–0.45 mm (0.0142–0.0177 in)
Lubrication system: Wet sump
Cooling system: Water
Starting system: Electric
Ignition system: T.C.I.
Spark plug (NGK): LFR7A
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Battery capacity: 12 V, 18 Ah
Battery type: YTX20L-BS
Charging system: Flywheel magneto
Drive unit: Propulsion system: Jet pump
Jet pump type: Axial flow, single stage
Impeller rotation: Counterclockwise
Jet thrust nozzle angle: 24+24 °
Jet thrust nozzle trim angle: -5, -3, 0, 3, 6 °

121
