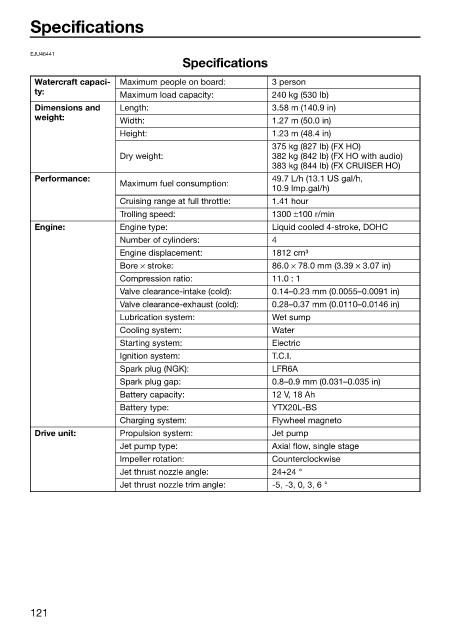

Specifications

EJU46441
Specifications
Watercraft capaci- Maximum people on board: 3 person
ty: Maximum load capacity: 240 kg (530 lb)
Dimensions and Length: 3.58 m (140.9 in)
weight: Width: 1.27 m (50.0 in)
Height: 1.23 m (48.4 in)
375 kg (827 lb) (FX HO)
Dry weight: 382 kg (842 lb) (FX HO with audio)
383 kg (844 lb) (FX CRUISER HO)
Performance: 49.7 L/h (13.1 US gal/h,
Maximum fuel consumption:
10.9 Imp.gal/h)
Cruising range at full throttle: 1.41 hour
Trolling speed: 1300 ±100 r/min
Engine: Engine type: Liquid cooled 4-stroke, DOHC
Number of cylinders: 4
Engine displacement: 1812 cm³
Bore × stroke: 86.0 × 78.0 mm (3.39 × 3.07 in)
Compression ratio: 11.0 : 1
Valve clearance-intake (cold): 0.14–0.23 mm (0.0055–0.0091 in)
Valve clearance-exhaust (cold): 0.28–0.37 mm (0.0110–0.0146 in)
Lubrication system: Wet sump
Cooling system: Water
Starting system: Electric
Ignition system: T.C.I.
Spark plug (NGK): LFR6A
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Battery capacity: 12 V, 18 Ah
Battery type: YTX20L-BS
Charging system: Flywheel magneto
Drive unit: Propulsion system: Jet pump
Jet pump type: Axial flow, single stage
Impeller rotation: Counterclockwise
Jet thrust nozzle angle: 24+24 °
Jet thrust nozzle trim angle: -5, -3, 0, 3, 6 °

121
