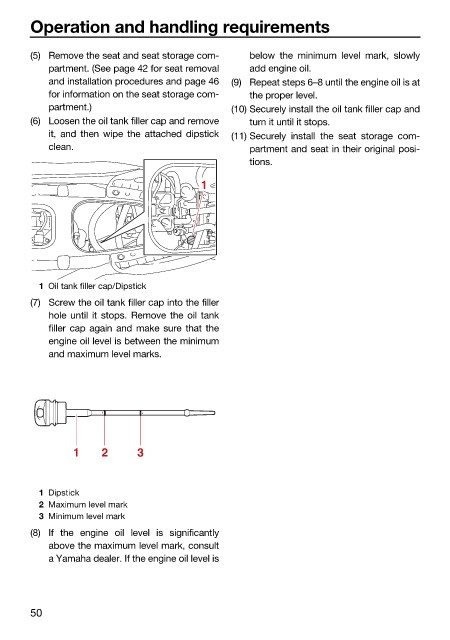

Operation and handling requirements

(5) Remove the seat and seat storage com- below the minimum level mark, slowly
partment. (See page 42 for seat removal add engine oil.
and installation procedures and page 46 (9) Repeat steps 6–8 until the engine oil is at
for information on the seat storage com- the proper level.
partment.) (10) Securely install the oil tank filler cap and
(6) Loosen the oil tank filler cap and remove turn it until it stops.
it, and then wipe the attached dipstick (11) Securely install the seat storage com-
clean. partment and seat in their original posi-
tions.
1

1 Oil tank filler cap/Dipstick
(7) Screw the oil tank filler cap into the filler
hole until it stops. Remove the oil tank
filler cap again and make sure that the
engine oil level is between the minimum
and maximum level marks.

1 2 3

1 Dipstick
2 Maximum level mark
3 Minimum level mark
(8) If the engine oil level is significantly
above the maximum level mark, consult
a Yamaha dealer. If the engine oil level is
