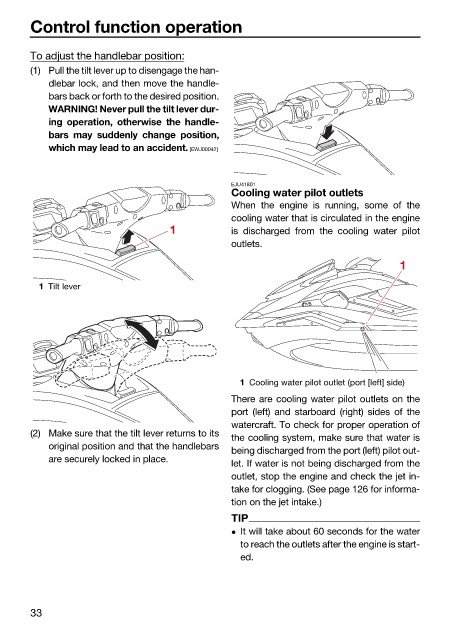

Control function operation

To adjust the handlebar position:
(1) Pull the tilt lever up to disengage the han-
dlebar lock, and then move the handle-
bars back or forth to the desired position.
WARNING! Never pull the tilt lever dur-
ing operation, otherwise the handle-
bars may suddenly change position,
which may lead to an accident. [EWJ00042]

EJU41801
Cooling water pilot outlets
When the engine is running, some of the
cooling water that is circulated in the engine
1 is discharged from the cooling water pilot
outlets.

1
1 Tilt lever

1 Cooling water pilot outlet (port [left] side)
There are cooling water pilot outlets on the
port (left) and starboard (right) sides of the
watercraft. To check for proper operation of
(2) Make sure that the tilt lever returns to its
the cooling system, make sure that water is
original position and that the handlebars
being discharged from the port (left) pilot out-
are securely locked in place.
let. If water is not being discharged from the
outlet, stop the engine and check the jet in-
take for clogging. (See page 126 for informa-
tion on the jet intake.)
TIP
 It will take about 60 seconds for the water
to reach the outlets after the engine is start-
ed.
