Watercraft operation

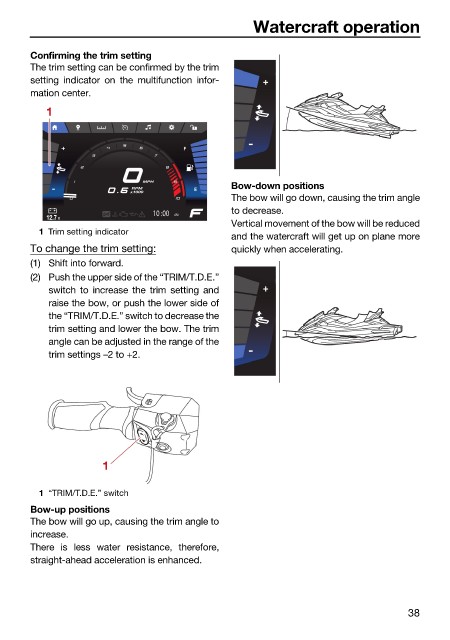

Confirming the trim setting
The trim setting can be confirmed by the trim
setting indicator on the multifunction infor-
mation center.
1

MPH
RPM Bow-down positions
x1000
The bow will go down, causing the trim angle
10 :00 AM to decrease.
12.7 V
Vertical movement of the bow will be reduced
1 Trim setting indicator
and the watercraft will get up on plane more
To change the trim setting: quickly when accelerating.
(1) Shift into forward.
(2) Push the upper side of the “TRIM/T.D.E.”
switch to increase the trim setting and
raise the bow, or push the lower side of
the “TRIM/T.D.E.” switch to decrease the
trim setting and lower the bow. The trim
angle can be adjusted in the range of the
trim settings –2 to +2.

1

1 “TRIM/T.D.E.” switch
Bow-up positions
The bow will go up, causing the trim angle to
increase.
There is less water resistance, therefore,
straight-ahead acceleration is enhanced.

38
