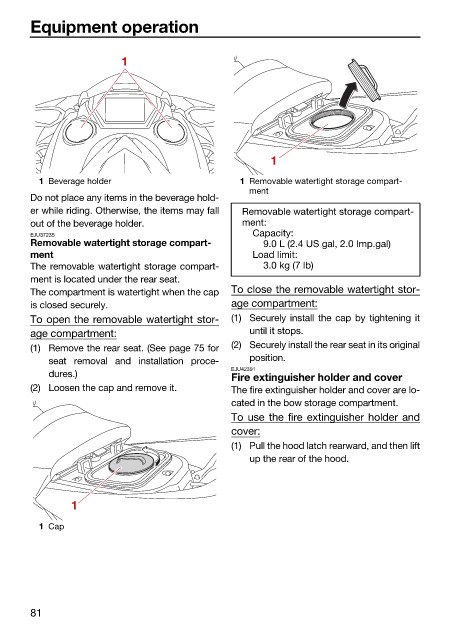

Equipment operation

1

1
1 Beverage holder 1 Removable watertight storage compart-
ment
Do not place any items in the beverage hold-
er while riding. Otherwise, the items may fall Removable watertight storage compart-
out of the beverage holder. ment:
Capacity:
EJU37235
Removable watertight storage compart- 9.0 L (2.4 US gal, 2.0 Imp.gal)
ment Load limit:
The removable watertight storage compart- 3.0 kg (7 lb)
ment is located under the rear seat.
The compartment is watertight when the cap To close the removable watertight stor-
is closed securely. age compartment:
To open the removable watertight stor- (1) Securely install the cap by tightening it
age compartment: until it stops.
(1) Remove the rear seat. (See page 75 for (2) Securely install the rear seat in its original
seat removal and installation proce- position.
EJU42391
dures.) Fire extinguisher holder and cover
(2) Loosen the cap and remove it. The fire extinguisher holder and cover are lo-
cated in the bow storage compartment.
To use the fire extinguisher holder and
cover:
(1) Pull the hood latch rearward, and then lift
up the rear of the hood.

1
1 Cap

81
