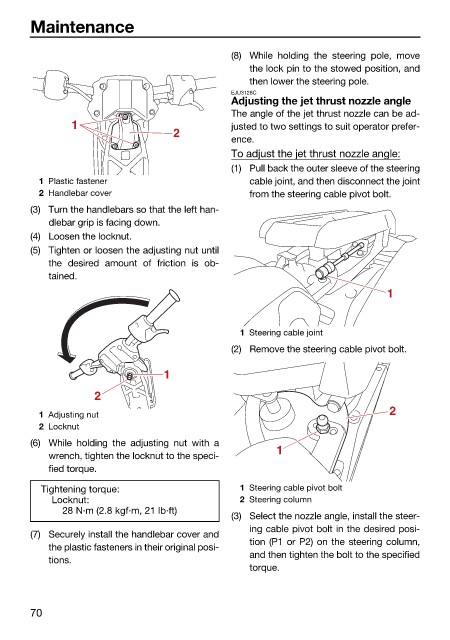

Maintenance

(8) While holding the steering pole, move
the lock pin to the stowed position, and
then lower the steering pole.
EJU3128C
Adjusting the jet thrust nozzle angle
The angle of the jet thrust nozzle can be ad-
1 justed to two settings to suit operator prefer-
2
ence.
To adjust the jet thrust nozzle angle:
(1) Pull back the outer sleeve of the steering
1 Plastic fastener cable joint, and then disconnect the joint
2 Handlebar cover from the steering cable pivot bolt.
(3) Turn the handlebars so that the left han-
dlebar grip is facing down.
(4) Loosen the locknut.
(5) Tighten or loosen the adjusting nut until
the desired amount of friction is ob-
tained.
1

1 Steering cable joint
(2) Remove the steering cable pivot bolt.
1

2
2
1 Adjusting nut
2 Locknut
(6) While holding the adjusting nut with a
1
wrench, tighten the locknut to the speci-
fied torque.
Tightening torque: 1 Steering cable pivot bolt
Locknut: 2 Steering column
28 N·m (2.8 kgf·m, 21 lb·ft)
(3) Select the nozzle angle, install the steer-
ing cable pivot bolt in the desired posi-
(7) Securely install the handlebar cover and
tion (P1 or P2) on the steering column,
the plastic fasteners in their original posi-
and then tighten the bolt to the specified
tions.
torque.

70
