Maintenance

TIP Yamaha dealer adjust the position of the han-
The outermost hole in the steering column dlebar.
cannot be used.

1 1

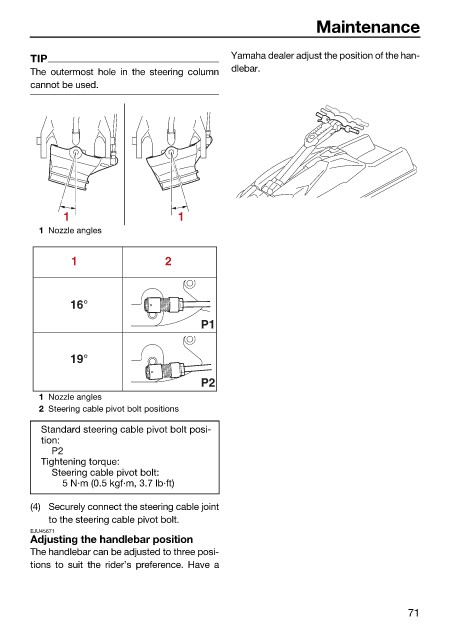

1 Nozzle angles

1 2

16°

P1

19°
P2
1 Nozzle angles
2 Steering cable pivot bolt positions

Standard steering cable pivot bolt posi-
tion:
P2
Tightening torque:
Steering cable pivot bolt:
5 N·m (0.5 kgf·m, 3.7 lb·ft)

(4) Securely connect the steering cable joint
to the steering cable pivot bolt.
EJU45671
Adjusting the handlebar position
The handlebar can be adjusted to three posi-
tions to suit the rider’s preference. Have a

71
