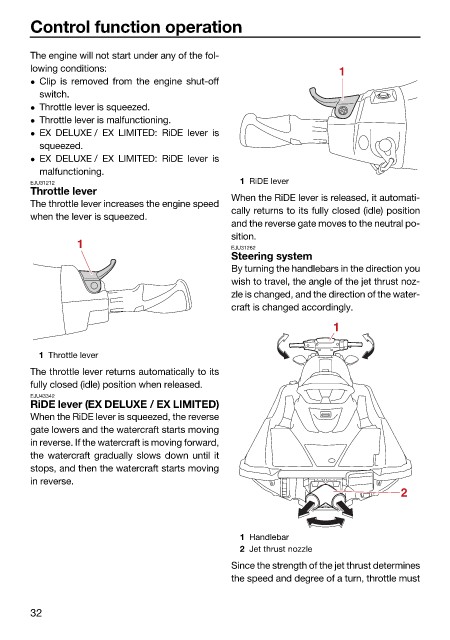

Control function operation

The engine will not start under any of the fol-
lowing conditions: 1
 Clip is removed from the engine shut-off
switch.
 Throttle lever is squeezed.
 Throttle lever is malfunctioning.
 EX DELUXE / EX LIMITED: RiDE lever is
squeezed.
 EX DELUXE / EX LIMITED: RiDE lever is
malfunctioning.
EJU31212 1 RiDE lever
Throttle lever
When the RiDE lever is released, it automati-
The throttle lever increases the engine speed
cally returns to its fully closed (idle) position
when the lever is squeezed.
and the reverse gate moves to the neutral po-
sition.
1 EJU31262
Steering system
By turning the handlebars in the direction you
wish to travel, the angle of the jet thrust noz-
zle is changed, and the direction of the water-
craft is changed accordingly.
1

1 Throttle lever
The throttle lever returns automatically to its
fully closed (idle) position when released.
EJU43342
RiDE lever (EX DELUXE / EX LIMITED)
When the RiDE lever is squeezed, the reverse
gate lowers and the watercraft starts moving
in reverse. If the watercraft is moving forward,
the watercraft gradually slows down until it
stops, and then the watercraft starts moving
in reverse.
2

1 Handlebar
2 Jet thrust nozzle
Since the strength of the jet thrust determines
the speed and degree of a turn, throttle must

32
