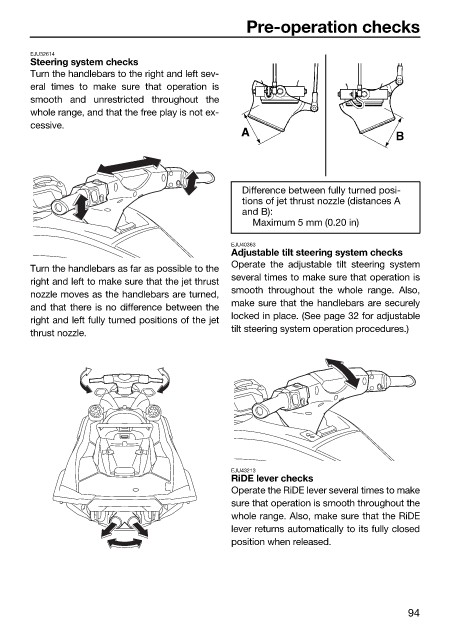

Pre-operation checks

EJU32614
Steering system checks
Turn the handlebars to the right and left sev-
eral times to make sure that operation is
smooth and unrestricted throughout the
whole range, and that the free play is not ex-
cessive.

Difference between fully turned posi-
tions of jet thrust nozzle (distances A
and B):
Maximum 5 mm (0.20 in)

EJU40363
Adjustable tilt steering system checks
Turn the handlebars as far as possible to the Operate the adjustable tilt steering system
right and left to make sure that the jet thrust several times to make sure that operation is
nozzle moves as the handlebars are turned, smooth throughout the whole range. Also,
and that there is no difference between the make sure that the handlebars are securely
right and left fully turned positions of the jet locked in place. (See page 32 for adjustable
thrust nozzle. tilt steering system operation procedures.)

EJU43213
RiDE lever checks
Operate the RiDE lever several times to make
sure that operation is smooth throughout the
whole range. Also, make sure that the RiDE
lever returns automatically to its fully closed
position when released.
