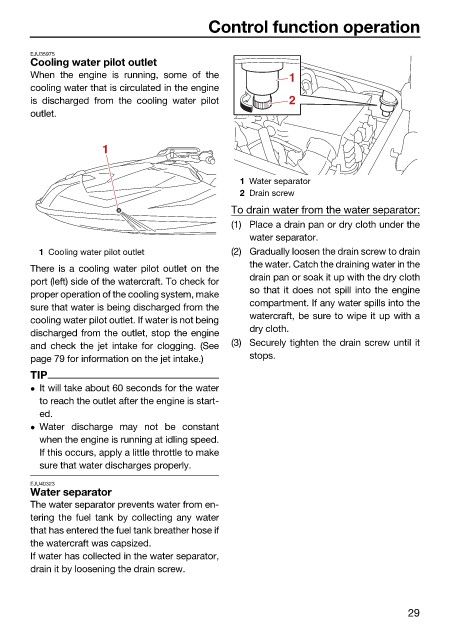

Control function operation

EJU35975
Cooling water pilot outlet
When the engine is running, some of the 1
cooling water that is circulated in the engine
is discharged from the cooling water pilot 2
outlet.

1

1 Water separator
2 Drain screw
To drain water from the water separator:
(1) Place a drain pan or dry cloth under the
water separator.
1 Cooling water pilot outlet (2) Gradually loosen the drain screw to drain
There is a cooling water pilot outlet on the the water. Catch the draining water in the
port (left) side of the watercraft. To check for drain pan or soak it up with the dry cloth
proper operation of the cooling system, make so that it does not spill into the engine
sure that water is being discharged from the compartment. If any water spills into the
cooling water pilot outlet. If water is not being watercraft, be sure to wipe it up with a
discharged from the outlet, stop the engine dry cloth.
and check the jet intake for clogging. (See (3) Securely tighten the drain screw until it
page 79 for information on the jet intake.) stops.
TIP
 It will take about 60 seconds for the water
to reach the outlet after the engine is start-
ed.
 Water discharge may not be constant
when the engine is running at idling speed.
If this occurs, apply a little throttle to make
sure that water discharges properly.

EJU40323
Water separator
The water separator prevents water from en-
tering the fuel tank by collecting any water
that has entered the fuel tank breather hose if
the watercraft was capsized.
If water has collected in the water separator,
drain it by loosening the drain screw.

29
