Instrument operation

EJU45701

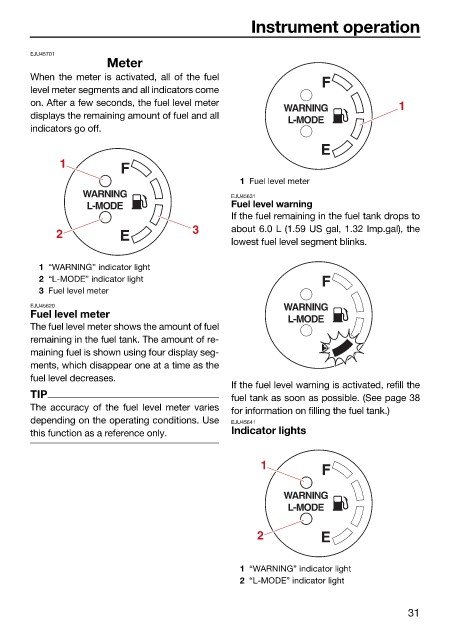

Meter
When the meter is activated, all of the fuel
level meter segments and all indicators come
on. After a few seconds, the fuel level meter 1
displays the remaining amount of fuel and all
indicators go off.

1
1 Fuel level meter
EJU45631
Fuel level warning
If the fuel remaining in the fuel tank drops to
2 3 about 6.0 L (1.59 US gal, 1.32 Imp.gal), the
lowest fuel level segment blinks.

1 “WARNING” indicator light
2 “L-MODE” indicator light
3 Fuel level meter
EJU45620
Fuel level meter
The fuel level meter shows the amount of fuel
remaining in the fuel tank. The amount of re-
maining fuel is shown using four display seg-
ments, which disappear one at a time as the
fuel level decreases.
If the fuel level warning is activated, refill the
TIP fuel tank as soon as possible. (See page 38
The accuracy of the fuel level meter varies for information on filling the fuel tank.)
depending on the operating conditions. Use EJU45641
this function as a reference only. Indicator lights

1

2

1 “WARNING” indicator light
2 “L-MODE” indicator light

31
