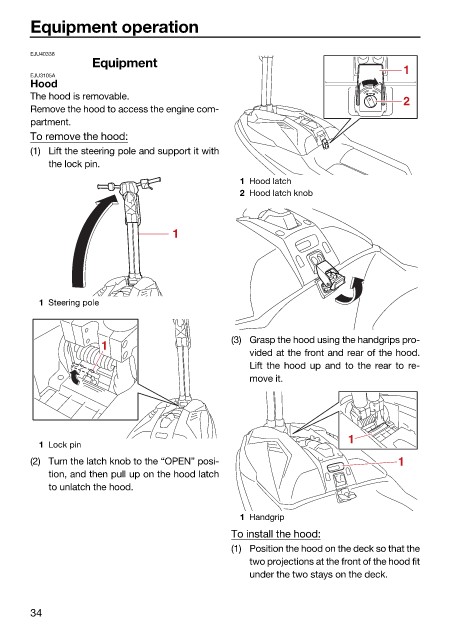

Equipment operation

EJU40338
Equipment
EJU3105A 1
Hood
The hood is removable. 2
Remove the hood to access the engine com-
partment.
To remove the hood:
(1) Lift the steering pole and support it with
the lock pin.
1 Hood latch
2 Hood latch knob

1

1 Steering pole

(3) Grasp the hood using the handgrips pro-
1
vided at the front and rear of the hood.
Lift the hood up and to the rear to re-
move it.

1
1 Lock pin
(2) Turn the latch knob to the “OPEN” posi- 1
tion, and then pull up on the hood latch
to unlatch the hood.

1 Handgrip
To install the hood:
(1) Position the hood on the deck so that the
two projections at the front of the hood fit
under the two stays on the deck.
