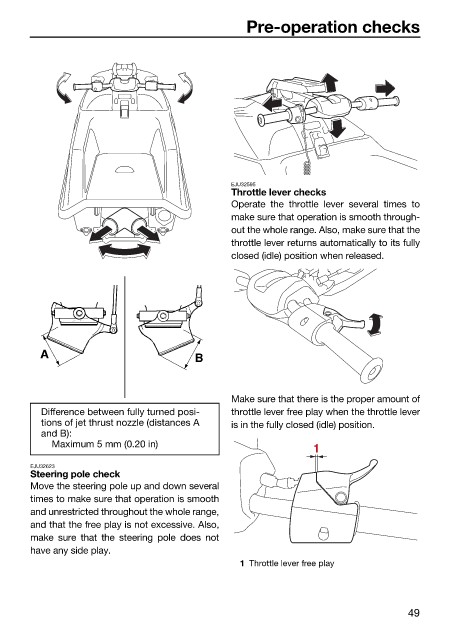

Pre-operation checks

EJU32595
Throttle lever checks
Operate the throttle lever several times to
make sure that operation is smooth through-
out the whole range. Also, make sure that the
throttle lever returns automatically to its fully
closed (idle) position when released.

Make sure that there is the proper amount of
Difference between fully turned posi- throttle lever free play when the throttle lever
tions of jet thrust nozzle (distances A is in the fully closed (idle) position.
and B):
Maximum 5 mm (0.20 in)
1
EJU32623
Steering pole check
Move the steering pole up and down several
times to make sure that operation is smooth
and unrestricted throughout the whole range,
and that the free play is not excessive. Also,
make sure that the steering pole does not
have any side play.
1 Throttle lever free play

49
