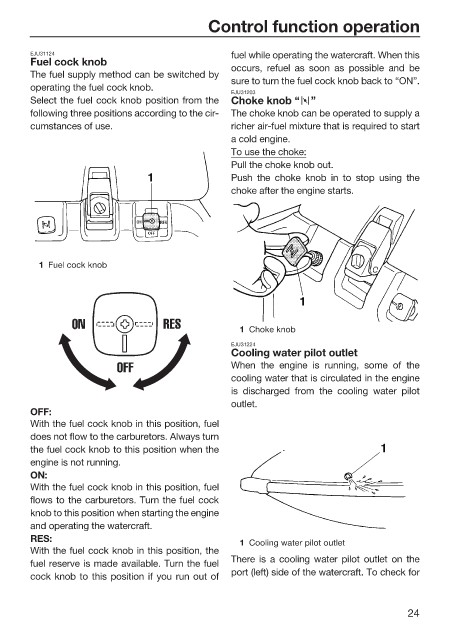

Page 31 - LIT-18626-12-56

Control function operation

EJU31124 fuel while operating the watercraft. When this
Fuel cock knob
occurs, refuel as soon as possible and be
The fuel supply method can be switched by
sure to turn the fuel cock knob back to “ON”.
operating the fuel cock knob.
EJU31203
Select the fuel cock knob position from the Choke knob “ ”
following three positions according to the cir- The choke knob can be operated to supply a
cumstances of use. richer air-fuel mixture that is required to start
a cold engine.
To use the choke:
Pull the choke knob out.
Push the choke knob in to stop using the
choke after the engine starts.

1 Fuel cock knob

1 Choke knob
EJU31224
Cooling water pilot outlet
When the engine is running, some of the
cooling water that is circulated in the engine
is discharged from the cooling water pilot
outlet.
OFF:
With the fuel cock knob in this position, fuel
does not flow to the carburetors. Always turn
the fuel cock knob to this position when the
engine is not running.
ON:
With the fuel cock knob in this position, fuel
flows to the carburetors. Turn the fuel cock
knob to this position when starting the engine
and operating the watercraft.
RES:
1 Cooling water pilot outlet
With the fuel cock knob in this position, the
There is a cooling water pilot outlet on the
fuel reserve is made available. Turn the fuel
port (left) side of the watercraft. To check for
cock knob to this position if you run out of

24
