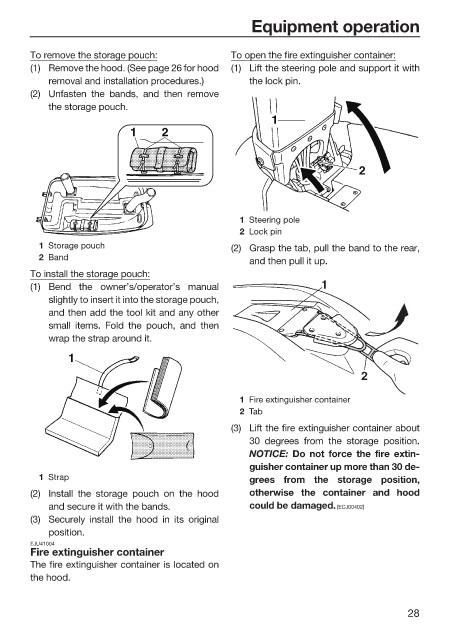

Equipment operation

To remove the storage pouch: To open the fire extinguisher container:
(1) Remove the hood. (See page 26 for hood (1) Lift the steering pole and support it with
removal and installation procedures.) the lock pin.
(2) Unfasten the bands, and then remove
the storage pouch.

1 Steering pole
2 Lock pin
1 Storage pouch (2) Grasp the tab, pull the band to the rear,
2 Band
and then pull it up.
To install the storage pouch:
(1) Bend the owner’s/operator’s manual
slightly to insert it into the storage pouch,
and then add the tool kit and any other
small items. Fold the pouch, and then
wrap the strap around it.

1 Fire extinguisher container
2 Tab
(3) Lift the fire extinguisher container about
30 degrees from the storage position.
NOTICE: Do not force the fire extin-
guisher container up more than 30 de-
1 Strap grees from the storage position,
(2) Install the storage pouch on the hood otherwise the container and hood
and secure it with the bands. could be damaged. [ECJ00402]
(3) Securely install the hood in its original
position.
EJU41004
Fire extinguisher container
The fire extinguisher container is located on
the hood.

28
