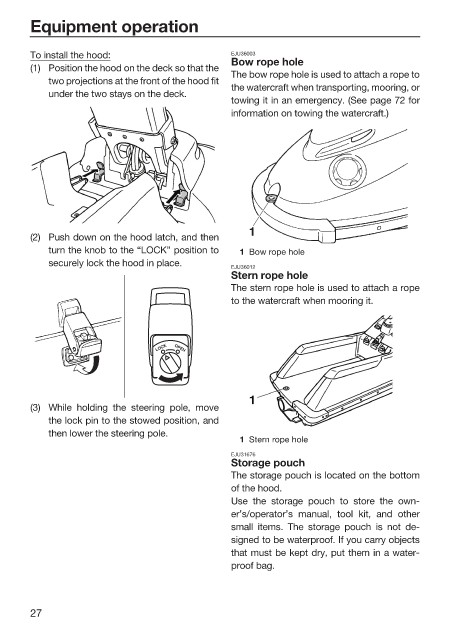

Equipment operation

To install the hood: EJU36003
Bow rope hole
(1) Position the hood on the deck so that the
The bow rope hole is used to attach a rope to
two projections at the front of the hood fit
the watercraft when transporting, mooring, or
under the two stays on the deck.
towing it in an emergency. (See page 72 for
information on towing the watercraft.)

1
(2) Push down on the hood latch, and then
turn the knob to the “LOCK” position to 1 Bow rope hole
securely lock the hood in place.
EJU36012
Stern rope hole
The stern rope hole is used to attach a rope
to the watercraft when mooring it.

LOCK OPEN

(3) While holding the steering pole, move
the lock pin to the stowed position, and
then lower the steering pole.
1 Stern rope hole
EJU31676
Storage pouch
The storage pouch is located on the bottom
of the hood.
Use the storage pouch to store the own-
er’s/operator’s manual, tool kit, and other
small items. The storage pouch is not de-
signed to be waterproof. If you carry objects
that must be kept dry, put them in a water-
proof bag.

27
