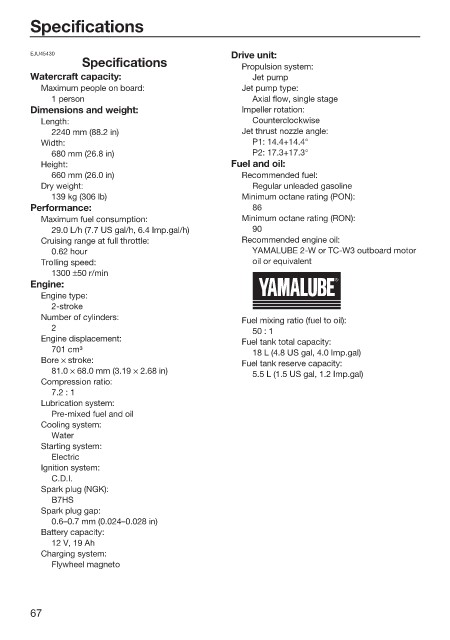

Specifications

EJU45430 Drive unit:
Specifications Propulsion system:
Watercraft capacity: Jet pump
Maximum people on board: Jet pump type:
1 person Axial flow, single stage
Dimensions and weight: Impeller rotation:
Length: Counterclockwise
2240 mm (88.2 in) Jet thrust nozzle angle:
Width: P1: 14.4+14.4°
680 mm (26.8 in) P2: 17.3+17.3°
Height: Fuel and oil:
660 mm (26.0 in) Recommended fuel:
Dry weight: Regular unleaded gasoline
139 kg (306 lb) Minimum octane rating (PON):
Performance: 86
Maximum fuel consumption: Minimum octane rating (RON):
29.0 L/h (7.7 US gal/h, 6.4 Imp.gal/h) 90
Cruising range at full throttle: Recommended engine oil:
0.62 hour YAMALUBE 2-W or TC-W3 outboard motor
Trolling speed: oil or equivalent
1300 ±50 r/min
Engine:
Engine type:
2-stroke
Number of cylinders: Fuel mixing ratio (fuel to oil):
2 50 : 1
Engine displacement: Fuel tank total capacity:
701 cm³ 18 L (4.8 US gal, 4.0 Imp.gal)
Bore × stroke: Fuel tank reserve capacity:
81.0 × 68.0 mm (3.19 × 2.68 in) 5.5 L (1.5 US gal, 1.2 Imp.gal)
Compression ratio:
7.2 : 1
Lubrication system:
Pre-mixed fuel and oil
Cooling system:
Water
Starting system:
Electric
Ignition system:
C.D.I.
Spark plug (NGK):
B7HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Battery capacity:
12 V, 19 Ah
Charging system:
Flywheel magneto

67
