Maintenance

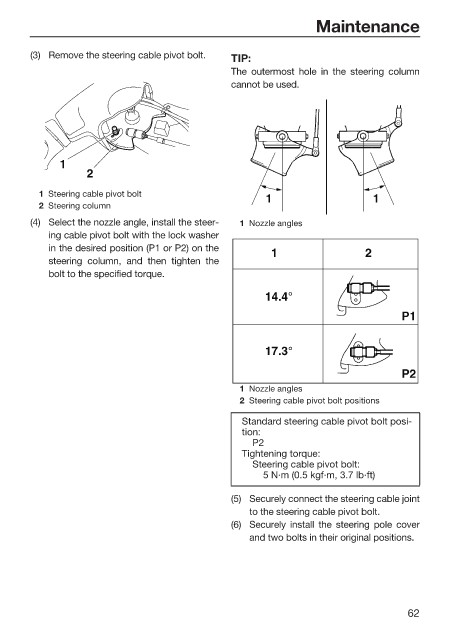

(3) Remove the steering cable pivot bolt.
TIP:
The outermost hole in the steering column
cannot be used.

1 Steering cable pivot bolt
2 Steering column
(4) Select the nozzle angle, install the steer- 1 Nozzle angles
ing cable pivot bolt with the lock washer
in the desired position (P1 or P2) on the
steering column, and then tighten the
bolt to the specified torque.

1 Nozzle angles
2 Steering cable pivot bolt positions
Standard steering cable pivot bolt posi-
tion:
P2
Tightening torque:
Steering cable pivot bolt:
5 N·m (0.5 kgf·m, 3.7 lb·ft)

(5) Securely connect the steering cable joint
to the steering cable pivot bolt.
(6) Securely install the steering pole cover
and two bolts in their original positions.
