Instrument operation

EJU44571

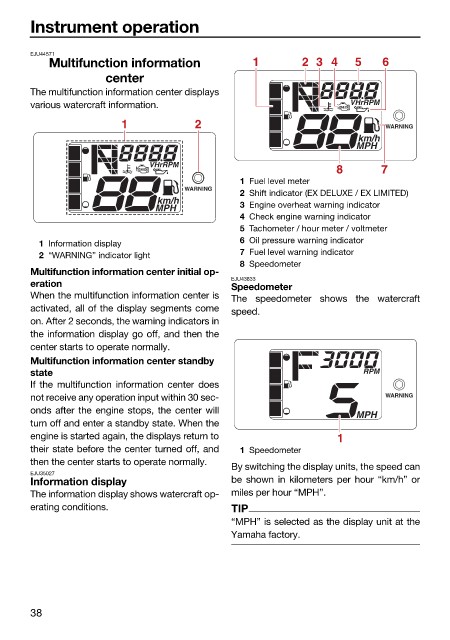

Multifunction information 1 2 3 4 5 6
center
The multifunction information center displays
various watercraft information.
1 2

8 7
1 Fuel level meter
2 Shift indicator (EX DELUXE / EX LIMITED)
3 Engine overheat warning indicator
4 Check engine warning indicator
5 Tachometer / hour meter / voltmeter
6 Oil pressure warning indicator
1 Information display
7 Fuel level warning indicator
2 “WARNING” indicator light
8 Speedometer
Multifunction information center initial op-
EJU43833
eration Speedometer
When the multifunction information center is The speedometer shows the watercraft
activated, all of the display segments come speed.
on. After 2 seconds, the warning indicators in
the information display go off, and then the
center starts to operate normally.
Multifunction information center standby
state
If the multifunction information center does
not receive any operation input within 30 sec-
onds after the engine stops, the center will
turn off and enter a standby state. When the
engine is started again, the displays return to 1
their state before the center turned off, and 1 Speedometer
then the center starts to operate normally.
By switching the display units, the speed can
EJU35027
Information display be shown in kilometers per hour “km/h” or
The information display shows watercraft op- miles per hour “MPH”.
erating conditions. TIP
“MPH” is selected as the display unit at the
Yamaha factory.
