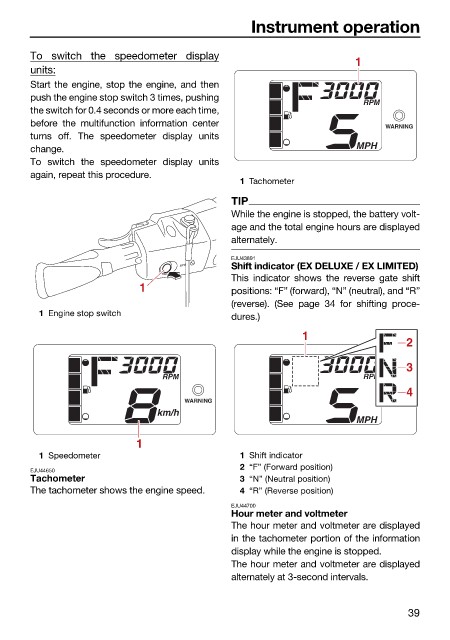

Instrument operation

To switch the speedometer display
1
units:
Start the engine, stop the engine, and then
push the engine stop switch 3 times, pushing
the switch for 0.4 seconds or more each time,
before the multifunction information center
turns off. The speedometer display units
change.
To switch the speedometer display units
again, repeat this procedure.
1 Tachometer
TIP
While the engine is stopped, the battery volt-
age and the total engine hours are displayed
alternately.
EJU43891
Shift indicator (EX DELUXE / EX LIMITED)
This indicator shows the reverse gate shift
1 positions: “F” (forward), “N” (neutral), and “R”
(reverse). (See page 34 for shifting proce-
1 Engine stop switch
dures.)
1
2

3
4

1
1 Speedometer 1 Shift indicator
2 “F” (Forward position)
EJU44650
Tachometer 3 “N” (Neutral position)
The tachometer shows the engine speed. 4 “R” (Reverse position)
EJU44700
Hour meter and voltmeter
The hour meter and voltmeter are displayed
in the tachometer portion of the information
display while the engine is stopped.
The hour meter and voltmeter are displayed
alternately at 3-second intervals.

39
