Instrument operation

EJU46665

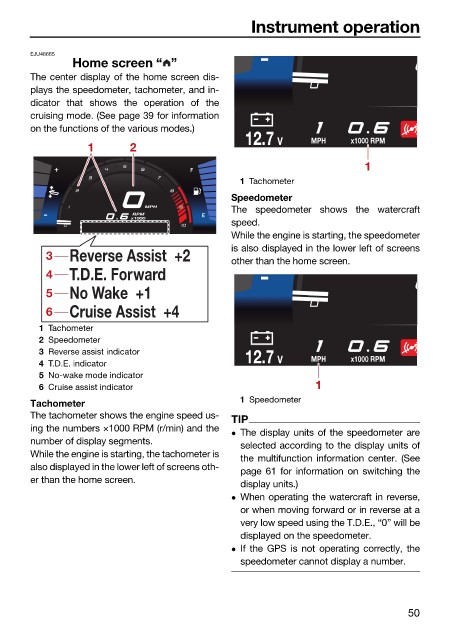

Home screen “ ”
The center display of the home screen dis-
plays the speedometer, tachometer, and in-
dicator that shows the operation of the
cruising mode. (See page 39 for information
on the functions of the various modes.)
12.7 V MPH x1000 RPM
1 2
1
1 Tachometer
Speedometer
MPH The speedometer shows the watercraft
RPM
x1000
speed.
While the engine is starting, the speedometer
is also displayed in the lower left of screens
3 Reverse Assist +2 other than the home screen.
4 T.D.E. Forward
5 No Wake +1
6 Cruise Assist +4
1 Tachometer
2 Speedometer
3 Reverse assist indicator
12.7 V MPH x1000 RPM
4 T.D.E. indicator
5 No-wake mode indicator
6 Cruise assist indicator 1
Tachometer 1 Speedometer
The tachometer shows the engine speed us-
TIP
ing the numbers ×1000 RPM (r/min) and the
 The display units of the speedometer are
number of display segments.
selected according to the display units of
While the engine is starting, the tachometer is
the multifunction information center. (See
also displayed in the lower left of screens oth-
page 61 for information on switching the
er than the home screen.
display units.)
 When operating the watercraft in reverse,
or when moving forward or in reverse at a
very low speed using the T.D.E., “0” will be
displayed on the speedometer.
 If the GPS is not operating correctly, the
speedometer cannot display a number.

50
