Instrument operation

EJU46642

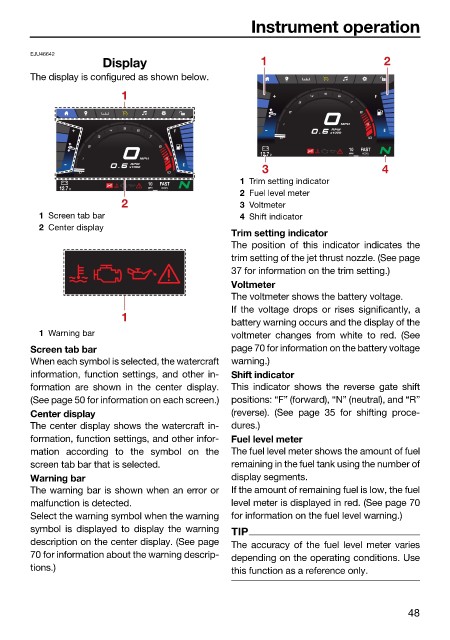

Display 1 2
The display is configured as shown below.
1

MPH
RPM
x1000
10 FAST
12.7 V MPH ACCEL
MPH
RPM
3 4
x1000
1 Trim setting indicator
10 FAST
12.7 V MPH ACCEL
2 Fuel level meter
2 3 Voltmeter
1 Screen tab bar 4 Shift indicator
2 Center display
Trim setting indicator
The position of this indicator indicates the
trim setting of the jet thrust nozzle. (See page
37 for information on the trim setting.)
Voltmeter
The voltmeter shows the battery voltage.
If the voltage drops or rises significantly, a
1
battery warning occurs and the display of the
1 Warning bar voltmeter changes from white to red. (See
Screen tab bar page 70 for information on the battery voltage
When each symbol is selected, the watercraft warning.)
information, function settings, and other in- Shift indicator
formation are shown in the center display. This indicator shows the reverse gate shift
(See page 50 for information on each screen.) positions: “F” (forward), “N” (neutral), and “R”
Center display (reverse). (See page 35 for shifting proce-
The center display shows the watercraft in- dures.)
formation, function settings, and other infor- Fuel level meter
mation according to the symbol on the The fuel level meter shows the amount of fuel
screen tab bar that is selected. remaining in the fuel tank using the number of
Warning bar display segments.
The warning bar is shown when an error or If the amount of remaining fuel is low, the fuel
malfunction is detected. level meter is displayed in red. (See page 70
Select the warning symbol when the warning for information on the fuel level warning.)
symbol is displayed to display the warning TIP
description on the center display. (See page The accuracy of the fuel level meter varies
70 for information about the warning descrip- depending on the operating conditions. Use
tions.) this function as a reference only.

48
