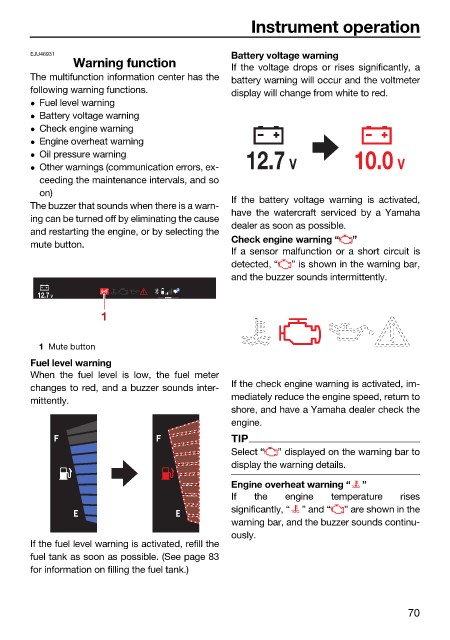

Instrument operation

EJU46931 Battery voltage warning
Warning function If the voltage drops or rises significantly, a
The multifunction information center has the battery warning will occur and the voltmeter
following warning functions. display will change from white to red.
 Fuel level warning
 Battery voltage warning
 Check engine warning
 Engine overheat warning
 Oil pressure warning
 Other warnings (communication errors, ex- 12.7 V 10.0 V
ceeding the maintenance intervals, and so
on)
If the battery voltage warning is activated,
The buzzer that sounds when there is a warn-
have the watercraft serviced by a Yamaha
ing can be turned off by eliminating the cause
dealer as soon as possible.
and restarting the engine, or by selecting the
Check engine warning “ ”
mute button.
If a sensor malfunction or a short circuit is
detected, “ ” is shown in the warning bar,
and the buzzer sounds intermittently.
2
12.7 V
1

1 Mute button
Fuel level warning
When the fuel level is low, the fuel meter
changes to red, and a buzzer sounds inter- If the check engine warning is activated, im-
mittently. mediately reduce the engine speed, return to
shore, and have a Yamaha dealer check the
engine.
TIP
Select “ ” displayed on the warning bar to
display the warning details.
Engine overheat warning “ ”
If the engine temperature rises
significantly, “ ” and “ ” are shown in the
warning bar, and the buzzer sounds continu-
ously.
If the fuel level warning is activated, refill the
fuel tank as soon as possible. (See page 83
for information on filling the fuel tank.)
