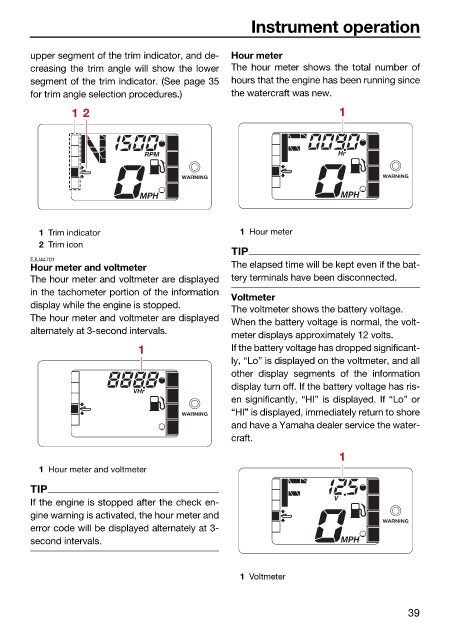

Instrument operation

upper segment of the trim indicator, and de- Hour meter
creasing the trim angle will show the lower The hour meter shows the total number of
segment of the trim indicator. (See page 35 hours that the engine has been running since
for trim angle selection procedures.) the watercraft was new.
1 2 1

1 Trim indicator 1 Hour meter
2 Trim icon
TIP
EJU44701
Hour meter and voltmeter The elapsed time will be kept even if the bat-
The hour meter and voltmeter are displayed tery terminals have been disconnected.
in the tachometer portion of the information
Voltmeter
display while the engine is stopped.
The voltmeter shows the battery voltage.
The hour meter and voltmeter are displayed
When the battery voltage is normal, the volt-
alternately at 3-second intervals.
meter displays approximately 12 volts.
1 If the battery voltage has dropped significant-
ly, “Lo” is displayed on the voltmeter, and all
other display segments of the information
display turn off. If the battery voltage has ris-
en significantly, “HI” is displayed. If “Lo” or
“HI” is displayed, immediately return to shore
and have a Yamaha dealer service the water-
craft.
1
1 Hour meter and voltmeter
TIP
If the engine is stopped after the check en-
gine warning is activated, the hour meter and
error code will be displayed alternately at 3-
second intervals.

1 Voltmeter

39
