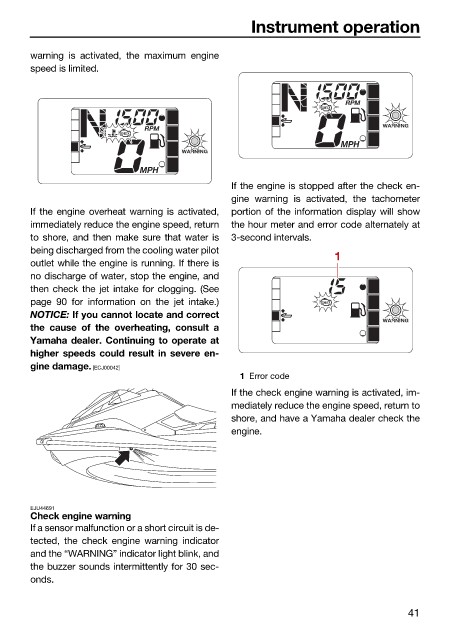

Instrument operation

warning is activated, the maximum engine
speed is limited.

If the engine is stopped after the check en-
gine warning is activated, the tachometer
If the engine overheat warning is activated, portion of the information display will show
immediately reduce the engine speed, return the hour meter and error code alternately at
to shore, and then make sure that water is 3-second intervals.
being discharged from the cooling water pilot 1
outlet while the engine is running. If there is
no discharge of water, stop the engine, and
then check the jet intake for clogging. (See
page 90 for information on the jet intake.)
NOTICE: If you cannot locate and correct
the cause of the overheating, consult a
Yamaha dealer. Continuing to operate at
higher speeds could result in severe en-
gine damage. [ECJ00042]
1 Error code
If the check engine warning is activated, im-
mediately reduce the engine speed, return to
shore, and have a Yamaha dealer check the
engine.

EJU44691
Check engine warning
If a sensor malfunction or a short circuit is de-
tected, the check engine warning indicator
and the “WARNING” indicator light blink, and
the buzzer sounds intermittently for 30 sec-
onds.

41
