Instrument operation

EJU47200

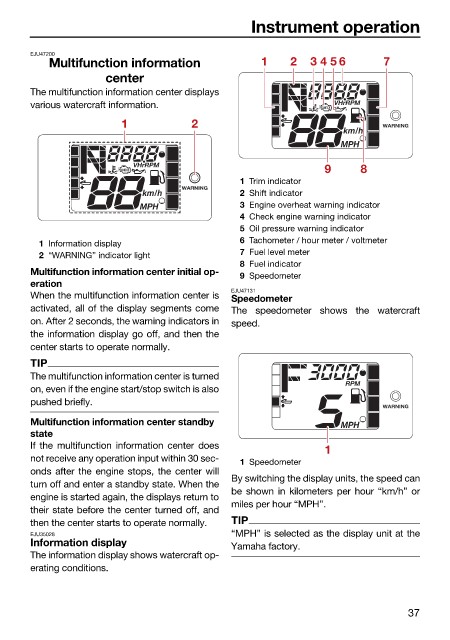

Multifunction information 1 2 3 4 5 6 7
center
The multifunction information center displays
various watercraft information.
1 2

9 8
1 Trim indicator
2 Shift indicator
3 Engine overheat warning indicator
4 Check engine warning indicator
5 Oil pressure warning indicator
6 Tachometer / hour meter / voltmeter
1 Information display
7 Fuel level meter
2 “WARNING” indicator light
8 Fuel indicator
Multifunction information center initial op-
9 Speedometer
eration
EJU47131
When the multifunction information center is Speedometer
activated, all of the display segments come The speedometer shows the watercraft
on. After 2 seconds, the warning indicators in speed.
the information display go off, and then the
center starts to operate normally.
TIP
The multifunction information center is turned
on, even if the engine start/stop switch is also
pushed briefly.
Multifunction information center standby
state
If the multifunction information center does 1
not receive any operation input within 30 sec- 1 Speedometer
onds after the engine stops, the center will
By switching the display units, the speed can
turn off and enter a standby state. When the
be shown in kilometers per hour “km/h” or
engine is started again, the displays return to
miles per hour “MPH”.
their state before the center turned off, and
then the center starts to operate normally. TIP
“MPH” is selected as the display unit at the
EJU35028
Information display
Yamaha factory.
The information display shows watercraft op-
erating conditions.
