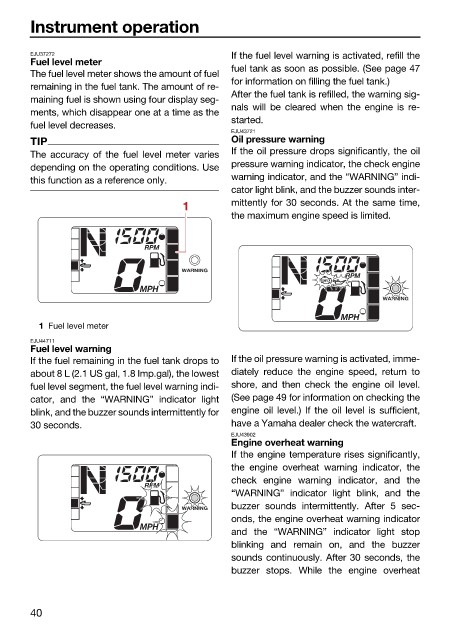

Instrument operation

EJU37272 If the fuel level warning is activated, refill the
Fuel level meter
The fuel level meter shows the amount of fuel fuel tank as soon as possible. (See page 47
for information on filling the fuel tank.)
remaining in the fuel tank. The amount of re-
After the fuel tank is refilled, the warning sig-
maining fuel is shown using four display seg-
nals will be cleared when the engine is re-
ments, which disappear one at a time as the
started.
fuel level decreases.
EJU43721
TIP Oil pressure warning
The accuracy of the fuel level meter varies If the oil pressure drops significantly, the oil
depending on the operating conditions. Use pressure warning indicator, the check engine
this function as a reference only. warning indicator, and the “WARNING” indi-
cator light blink, and the buzzer sounds inter-
1 mittently for 30 seconds. At the same time,
the maximum engine speed is limited.

1 Fuel level meter
EJU44711
Fuel level warning
If the fuel remaining in the fuel tank drops to If the oil pressure warning is activated, imme-
about 8 L (2.1 US gal, 1.8 Imp.gal), the lowest diately reduce the engine speed, return to
fuel level segment, the fuel level warning indi- shore, and then check the engine oil level.
cator, and the “WARNING” indicator light (See page 49 for information on checking the
blink, and the buzzer sounds intermittently for engine oil level.) If the oil level is sufficient,
30 seconds. have a Yamaha dealer check the watercraft.
EJU43902
Engine overheat warning
If the engine temperature rises significantly,
the engine overheat warning indicator, the
check engine warning indicator, and the
“WARNING” indicator light blink, and the
buzzer sounds intermittently. After 5 sec-
onds, the engine overheat warning indicator
and the “WARNING” indicator light stop
blinking and remain on, and the buzzer
sounds continuously. After 30 seconds, the
buzzer stops. While the engine overheat

40
